thin-kerf resaws
16" master grade saw

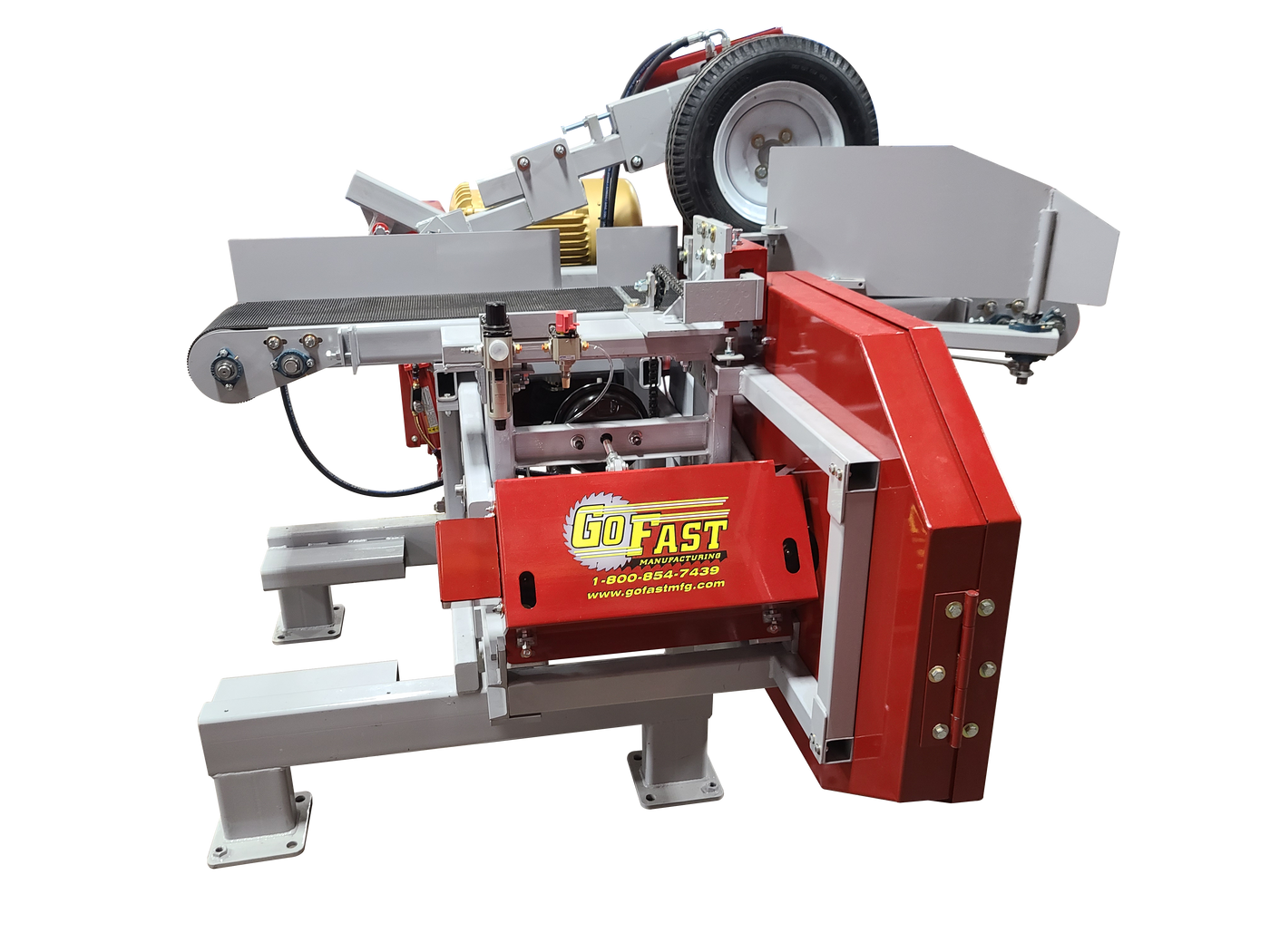

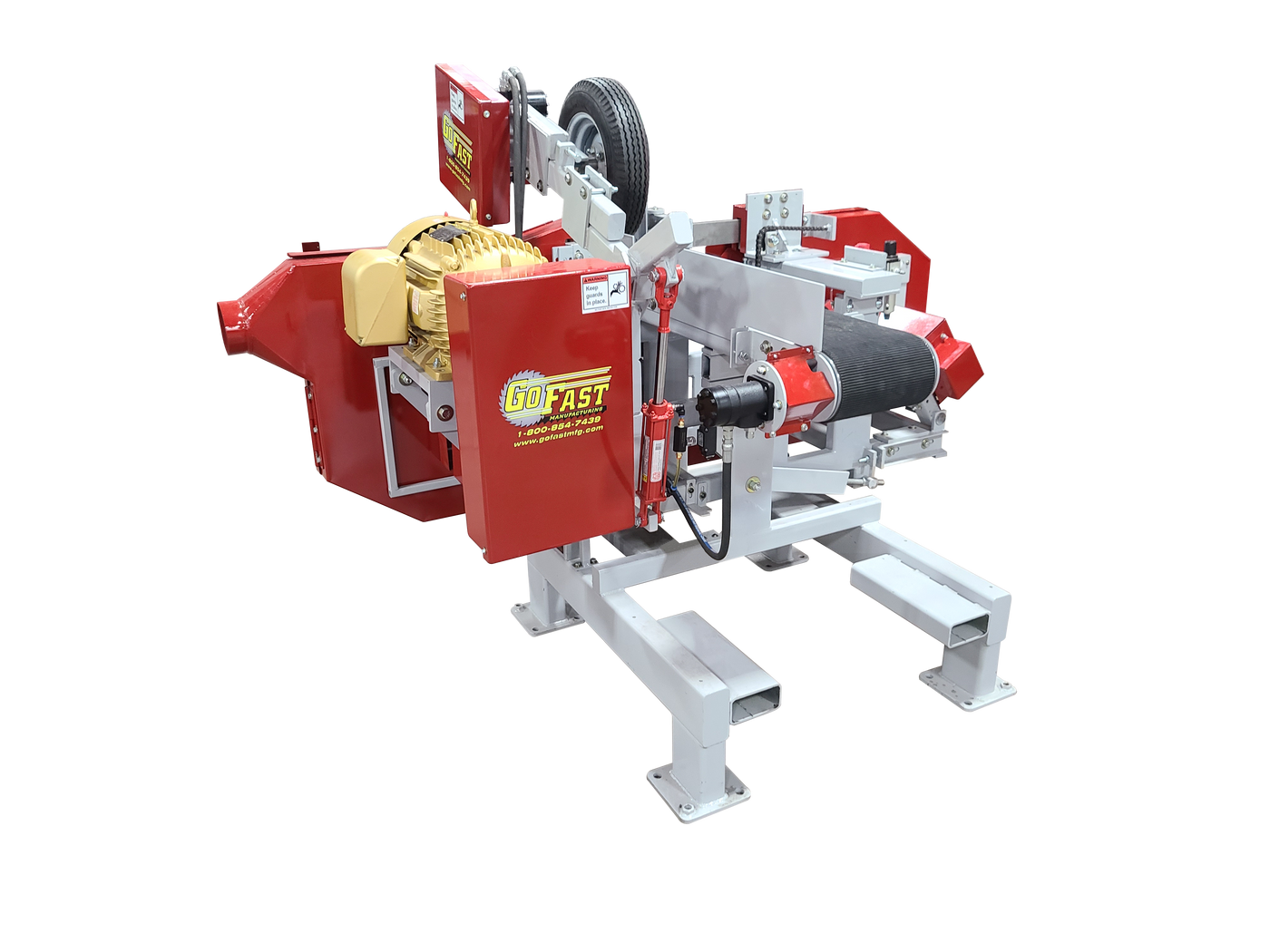

The Go-Fast Resaw is engineered for high production resawing of materials up to 16” wide, utilizing 1-1/2” or 2” blades and 30” dynamically balanced steel band wheels powered by a robust 30 HP motor for precise cutting of even the toughest wood. Its hydraulic-powered blade adjustment, optional height readout, and setworks system enable quick and effortless adjustments at the push of a button, eliminating the need to stop production for fine-tuning.
With a heavy-duty hold-down system and self-adjusting blade guide ensuring consistent infeed speed and optimal control, the Go-Fast Grade Resaw delivers maximum efficiency, reliability, and precision to meet the demands of high-performance resawing.
CLICK ON THE VIDEOS BELOW TO SEE OUR RESAWS IN ACTION
Overview
- Designed for medium to high levels of production
- Engineered for optimal performance and seamless operation
machine details
12" Powered Belt Conveyor
Hydraulically-Driven Screw for Adjustable Blade Position on the Fly
Top Mounted Powered Pneumatic Tire Hold Down w/ Pressure from Hydraulic Cylinder
Self-Adjusting Blade Guide System
Uses 17'6" Bands (1-1/2" & 2" Wide)
30HP Motor 3-Phase
Hydraulic System w/ Variable Feed Speed
0 – 120 FPM
Adjustable Air Blade Tension System
80 – 150 PSI Input Pressure
(1) 6” Dust Port
900 CFM Recommended
Blade & Belt Guards
88" Long x 103" Wide x 69" Tall
44" Feed Belt Height
6x3 Tubular Framing
Heavy-Duty 2-7/16" Arbors & Bearings
30" Solid Steel Dynamically Balanced Band Wheels
Up to 16"
Unlimited
3/4" – 9-1/2" from Conveyor Belt
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Single or Multi-Head Configurations
Band Lube System
Automatic Hydraulic Setworks
Infeed/Outfeed Transfers
Runaround System
Board Edger
Board Trimmer
Green Chain
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Resaws
Quick comparison to help you select the right machine for your operation.
| Machine name | |||||
|---|---|---|---|---|---|
| Feed Rate | Up to 120 FPM | Up to 120 FPM | Up to 120 FPM | Up to 80 FPM | Up to 120 FPM |
| Material capacity | Up to 6" Wide | Up to 8" Wide | Up to 12" Wide | Up to 16" Wide | Up to 16" Wide |
| Power options | 15HP 3-Phase Standard | 15HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 30HP 3-Phase Standard |
| Typical material use | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Low – Medium Volume Production | Medium – High Volume Production |
