Chopsaws

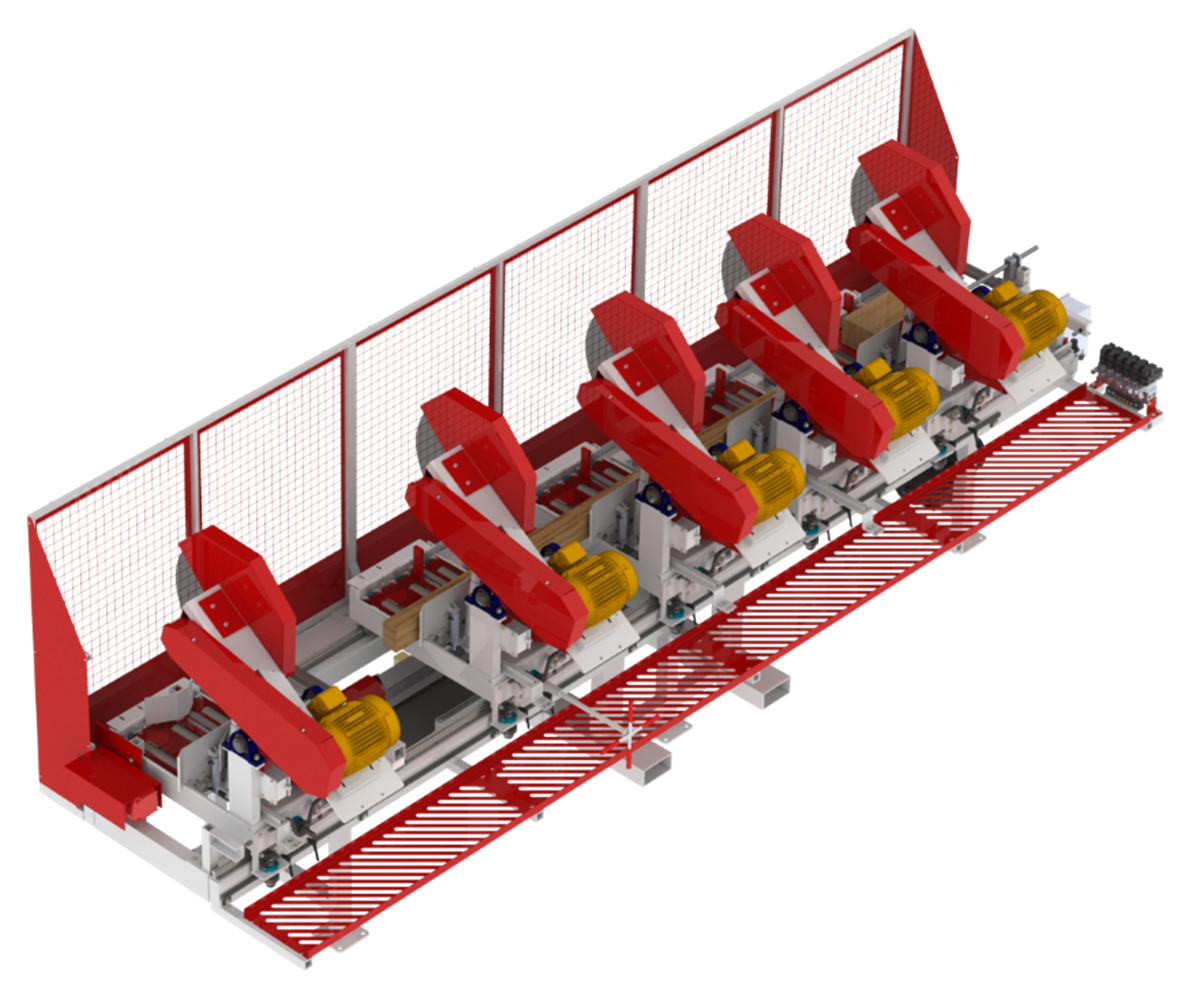

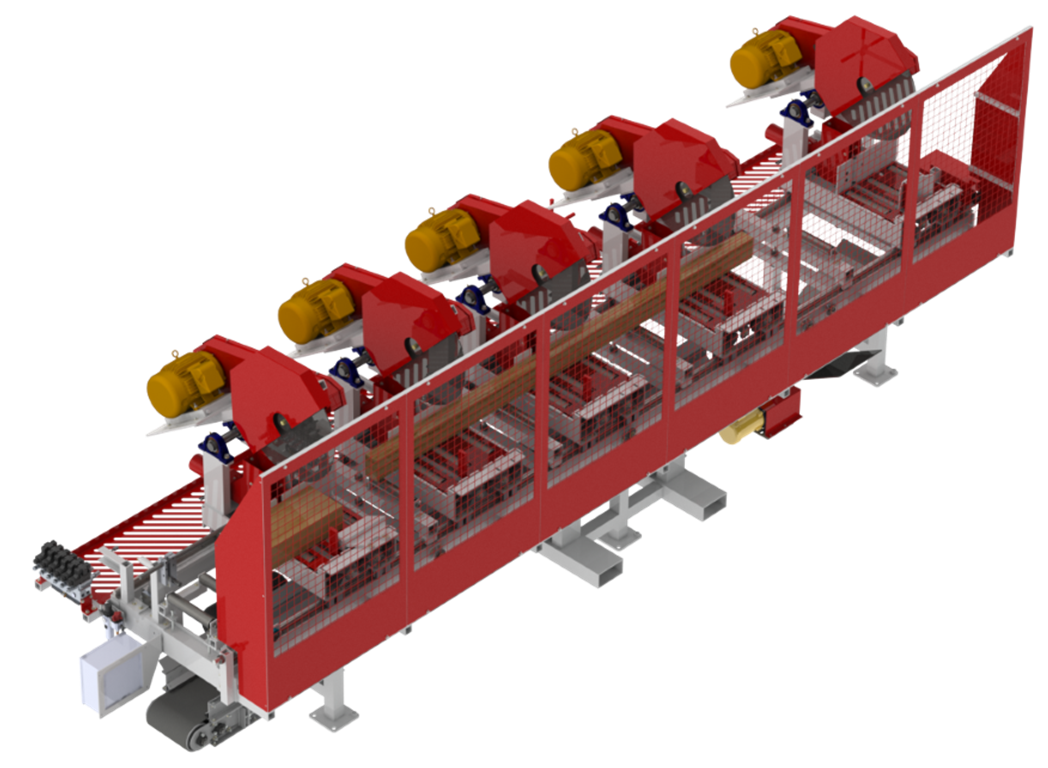

MCS-28 Multi-head chopsaw
Upgrade your wood processing operation with the Go Fast MFG Multi-Head Chopsaw, engineered for precision, flexibility, and high-output performance. Featuring up to five cutting heads with 28" blades, each powered by a 10 HP electric motor, this system delivers clean, accurate cuts using pneumatic material clamps on material up to 6" wide, 10" tall, and 192" long. An advanced design with powered rollers, waste conveyors, and dedicated dust collection at each saw head supports efficient, continuous operation. Fully prewired, user-friendly controls make the system easy to run, while a wide range of customization options—including board tippers, rollcases, unscrambler systems, and additional waste conveyors.
CLICK ON THE VIDEOS BELOW TO SEE OUR MULTI-HEAD CHOPSAW IN ACTION.
Overview
- Designed for low levels of production
- Engineered for ease of use & operator safety
machine details
Manual Head Positioning
Powered Rollers
Remote Joystick & Hand Control Station
Pneumatic Material Clamps
Pneumatic Cant Roller
Blade:
28" Carbide Tipped
Power:
10HP 3 Phase (Standard)
4” Dust Ports (400 CFM)
Waste Conveyor
Length: 262"
Width: 89"
Height: 87-5/8"
3" x 6" Steel Tubing
1-1/2" Blade Arbors & Bearings
Hardened Linear Bearing Shafts
Belt & Blade Guards
Perimeter Safety Fencing
E-Stops
10" Wide x 6" Tall Max Cross Section
22" Minimum
No Max Length
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Digital Read Out (DRO)
Blade Motor Upgrade: 15HP Motor
Length Capacities: Various lengths for different capacities
Automatic Feeder
Unscramblers
Round Tables
Take-Away Rollcase
Package Decks
Riser Waste Conveyor
Dump Hoppers
Flex Hose Kit
2-5
Automatic Air System to Convert Into "NXL" Notcher
10HP Motor Single Phase (May Decrease Production Rates)
Caster Feet
Stringer Stacking Rack
Stand Alone Control Station
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Chopsaws
Quick comparison to help you select the right machine for your operation.
| Machine name |
CS-Series
|
Mighty Chop
| |
|---|---|---|---|
| Automation level | Partially Automated | Manual (Standard) | Manual |
| Material capacity | Up to 10" Wide X 6" Tall | Up to 12" Wide X 8" Tall | Up to 6" Wide X 4" Tall |
| Power options | 10HP 3-Phase Standard | 7.5HP or 10HP 3-Phase Standard | 5HP 3-Phase Standard |
