Pallet Notchers

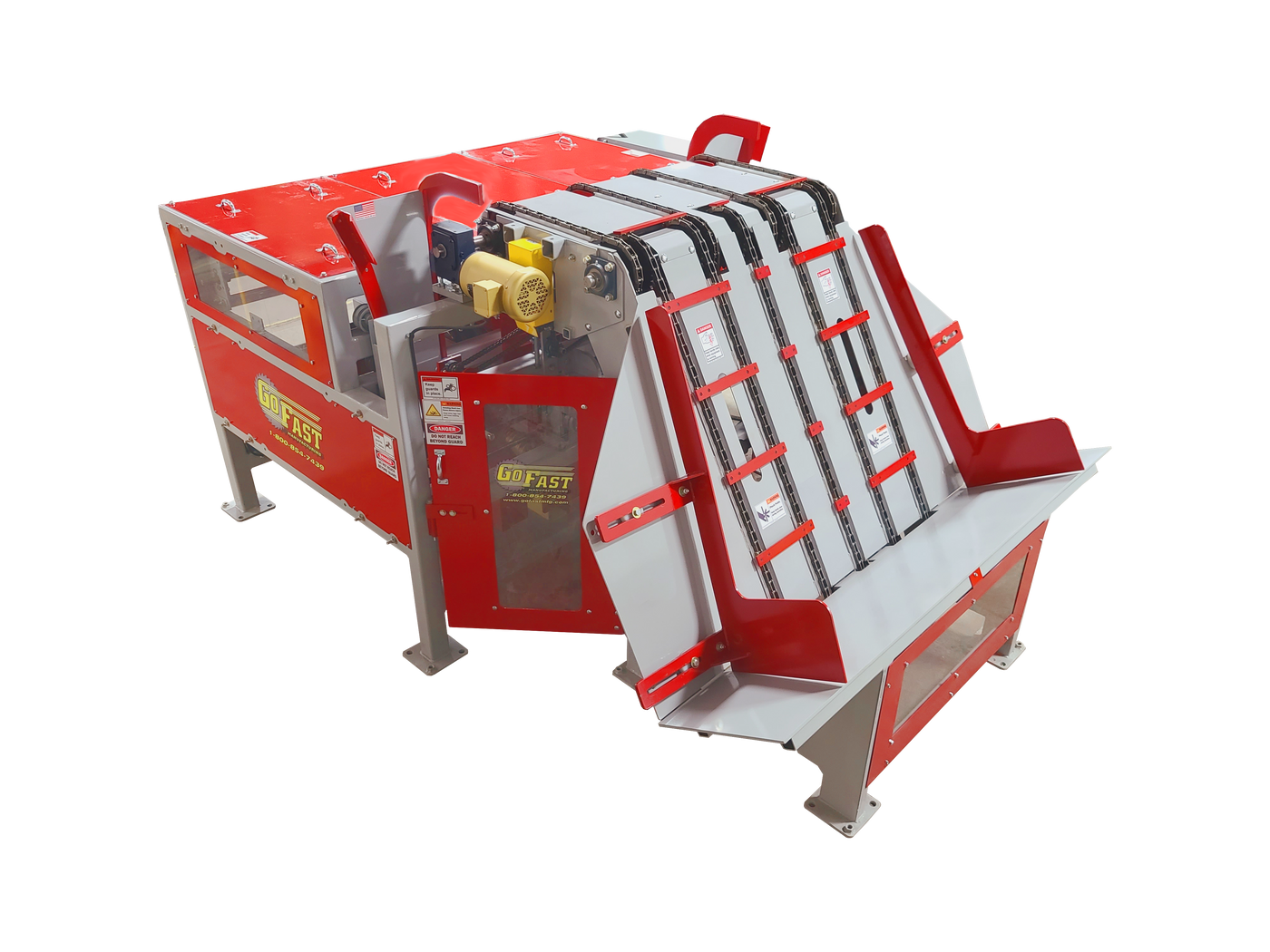

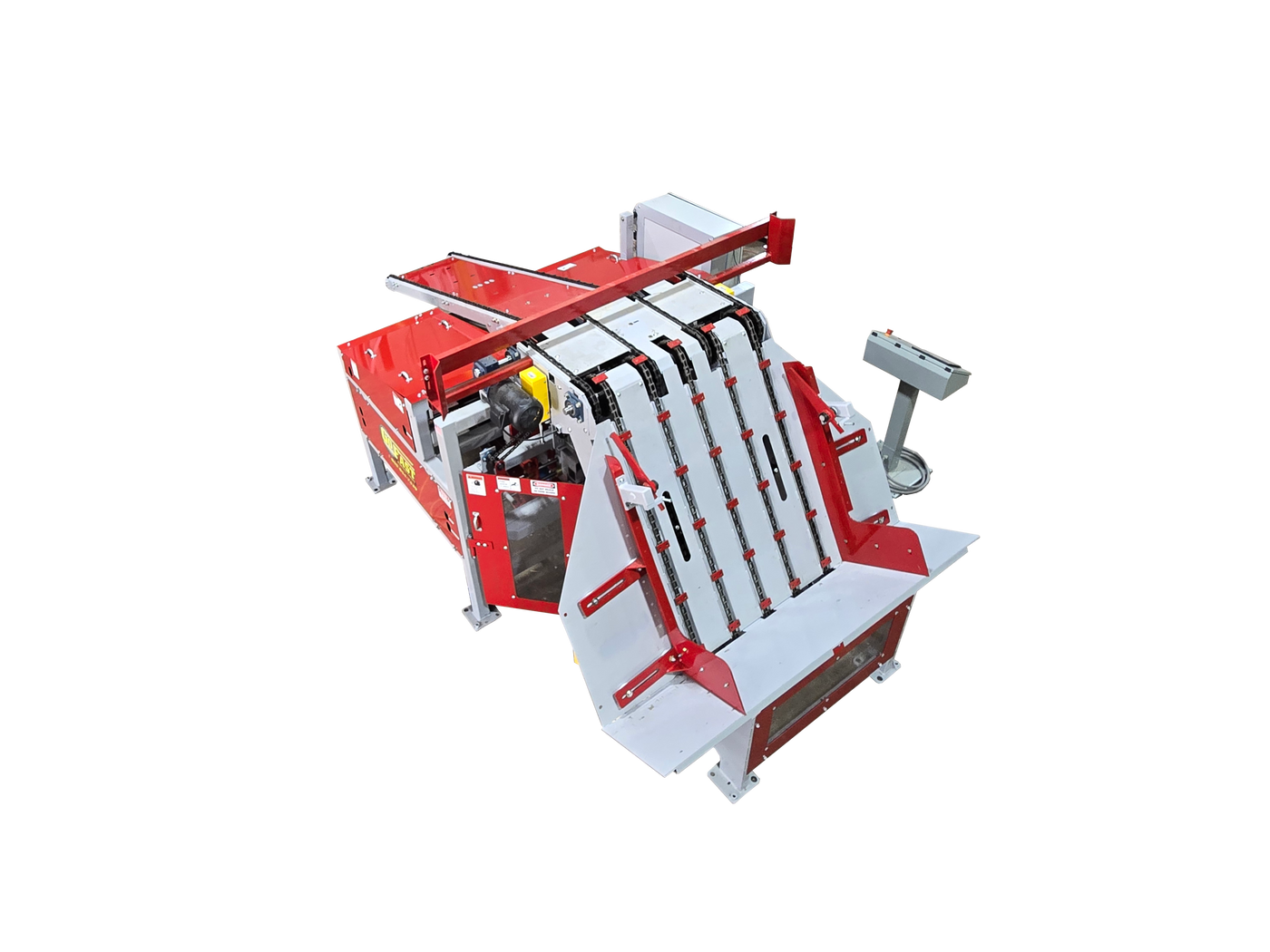

2NXP Double Head Notcher
The Go Fast 2NXP High-Speed Double Head Notcher delivers consistent, high-production pallet board notching. Heavy-duty construction supports long-term reliability, with cycle rates up to 6,000 notches per hour. Stringers are indexed individually by an electric cam-driven push arm. Dual carbide cutters running at 3,600 RPM, powered by two 30 HP motors, produce clean, repeatable notches. Quick tool-less adjustments and an onboard HMI simplify setup and operation.
CLICK ON THE VIDEOS BELOW TO SEE OUR 2NXP NOTCHERS IN ACTION
Overview
- Designed for the highest levels of production
- Engineered for jam prevention
- Never before seen notcher technologies
Controls & Automation
- PLC controlled with touchscreen HMI
- Operator control over speeds, timers, and stringer counts
- Production data collection and troubleshooting screens
- Remote VPN diagnostics and support
machine details
Board Thickness
Boot Location
Board Length
Dual 30HP Motors (Independent Per Head)
Quad V-Groove Belt & Pulley Drive
3,600 RPM Cutter Head Arbors
2HP Electro-Cam Indexer
Solid Steel Push Bar
1-1/2" Diameter Linear Motion Shafts
Adjustable Cycle Speeds
3,000 – 7,000 Cycles Per Hour
Adjustable via Unscrambler & Electro-Cam Infeed
(2) 10" Dust Ports
3,600 CFM Recommended Per Port
Optional Sawdust Conveyor
E-Stops
Blade & Belt Guards
Locking Unscrambler Access Doors
See-Through Guarding
Pneumatic Board Hold-Downs
2HP Variable Speed Control
5-Chain Strand Infeed
Quick-Access Doors
Jam Prevention Features
5" – 50"
0" – 3" (Standard Range)
1" – 2-1/2" (Standard Range)
30" – 72" Standard
Optional: 96", 120", 144"
3" – 4" (Standard Range)
Use this for bullets or stacked lines.
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Allows Notcher to Be Bypassed
Integrated with Overhead Conveyor
UpSTAK Stacker Integrated to Outfeed
Unscrambler Systems
Stringer Tilt Hoist Systems
Built to Accommodate Non-Standard Requirements
Modified for Unique Production Needs
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Notchers
Quick comparison to help you select the right machine for your operation.
| Machine name | ||||||
|---|---|---|---|---|---|---|
| Automation level | Fully Automated | Partially Automated | Partially Automated | Partially Automated | Partially Automated | Partially Automated |
| Cycle rate | Up to 7,000 Stringers Per Hour | Up to 4,000 Stringers per Hour | Up to 1,750 Stringers per Hour | Up to 800 Stringers per Hour | Up to 540 Stringers per Hour | Up to 240 Stringers per Hour |
| Material capacity | Up to 2-1/2" Wide X 4" Tall | Up to 8" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 2" Wide X 5-1/2" Tall |
| Power options | 30HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 10HP 3-Phase Standard |
