MATERIAL HANDLING

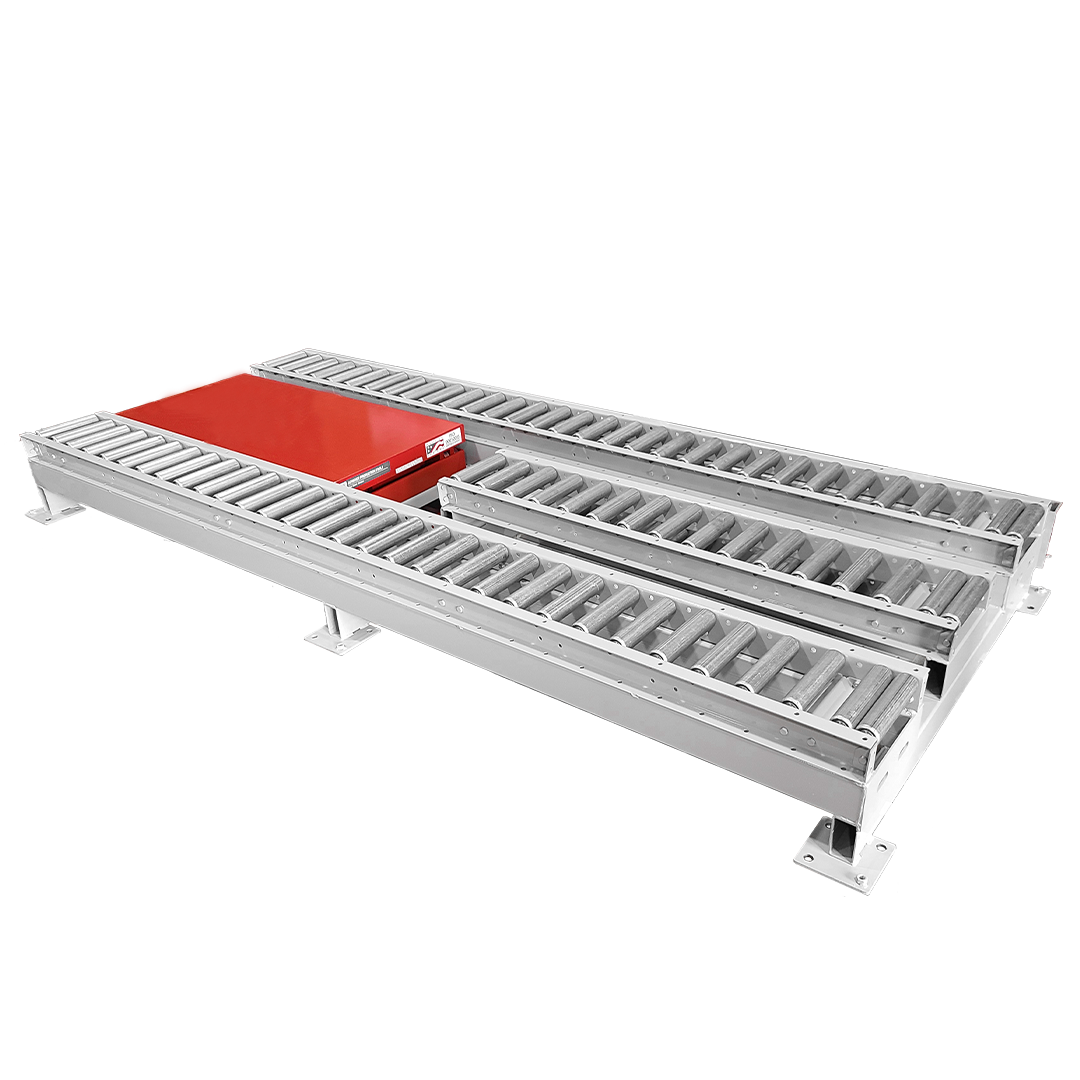

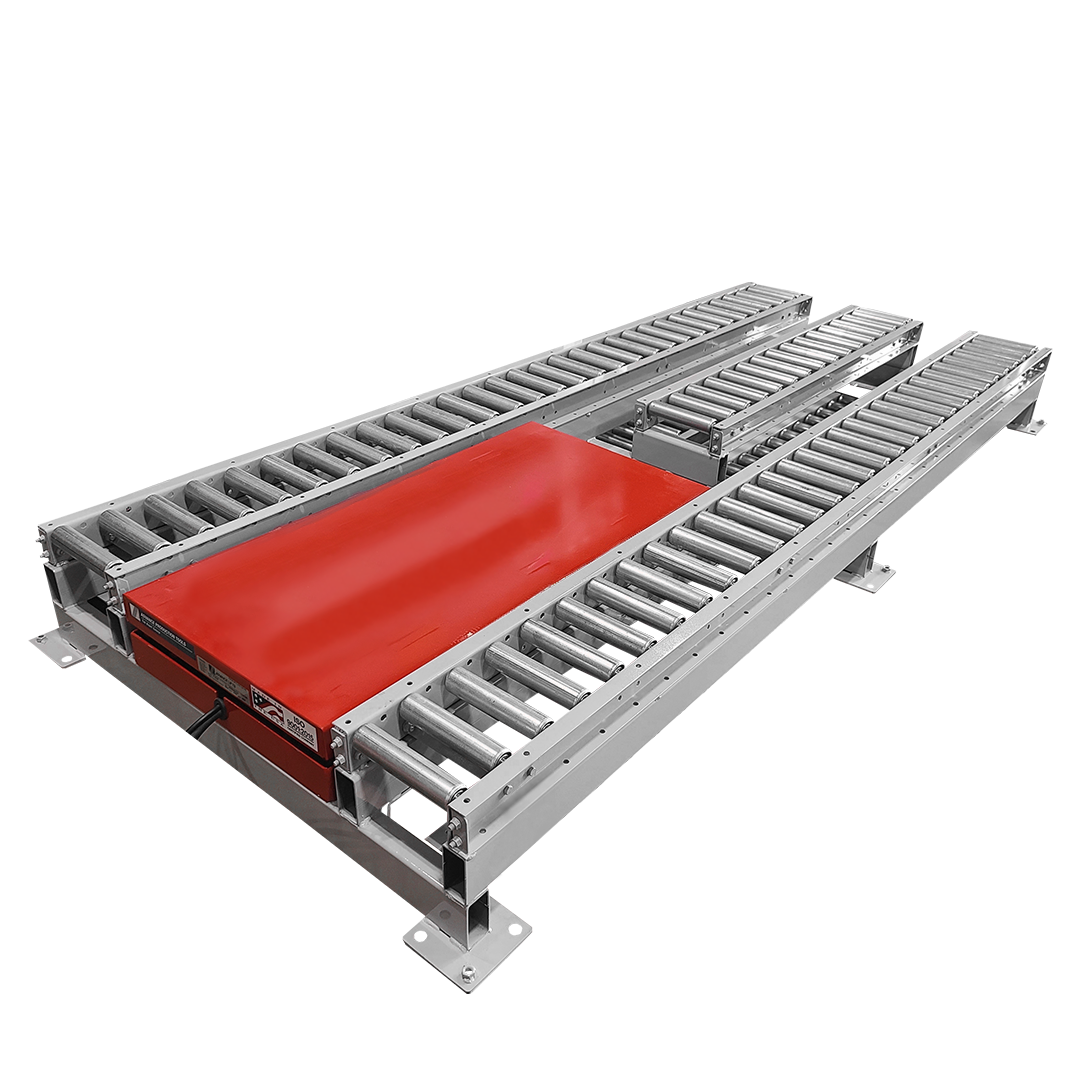

RCL – Roll Case & Lift Table

When you need a cost-effective solution to streamline your wood processing operations, look no further than the RCL Roll Case and Lift Table. Designed with simplicity and productivity in mind, the RCL works well in a wide range of businesses.

The RCL combines a sturdy lift table with gravity rollers, allowing operators to advance wood bundles manually. With 120” long rollers, you can stage up to two bundles before the lift table, ensuring a continuous flow of materials.

Offering an affordable alternative to automating your wood handling process, the RCL helps optimize costs without compromising quality.

Base Price $10,550 Price breaks at quantities of 4 & 8

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

machine details

Roll Case

3 Roll Case Sections
Modular Built on a 2x4 Tubular Frame
1.9" Rollers w/ 7/16" Hex Axle
Rollers Spaced Every 4" On-Center (Standard)

Lift Table

24" Wide x 48" Long Platform
36" Travel Height
Foot Controls (Standard)
1.5HP Motor 3-Phase (Standard)

Dimensions & Capacities

126" Long x 54" Wide x 15" Tall
12" Roller Height
2,500 LB Lift Table Capacity (Standard)

Width Between Notches:

5" – 50"

Notch Height Capacity:

0" – 3" (Standard Range)

Board Width Capacity:

1" – 2-1/2" (Standard Range)

Board Length Capacity:

30" – 72" Standard
Optional: 96", 120", 144"

Board Height Capacity:

3" – 4" (Standard Range)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

Standard Options

Single Phase Lift Table Motor
Lift Table Hand Controls
5' Roll Case Extension (Bolts to Infeed of RCL)

Customization

If you require an option or customization not listed, please contact us. Our team will be happy to work with you to develop a solution that meets your specific requirements.

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change
