Pallet Notchers

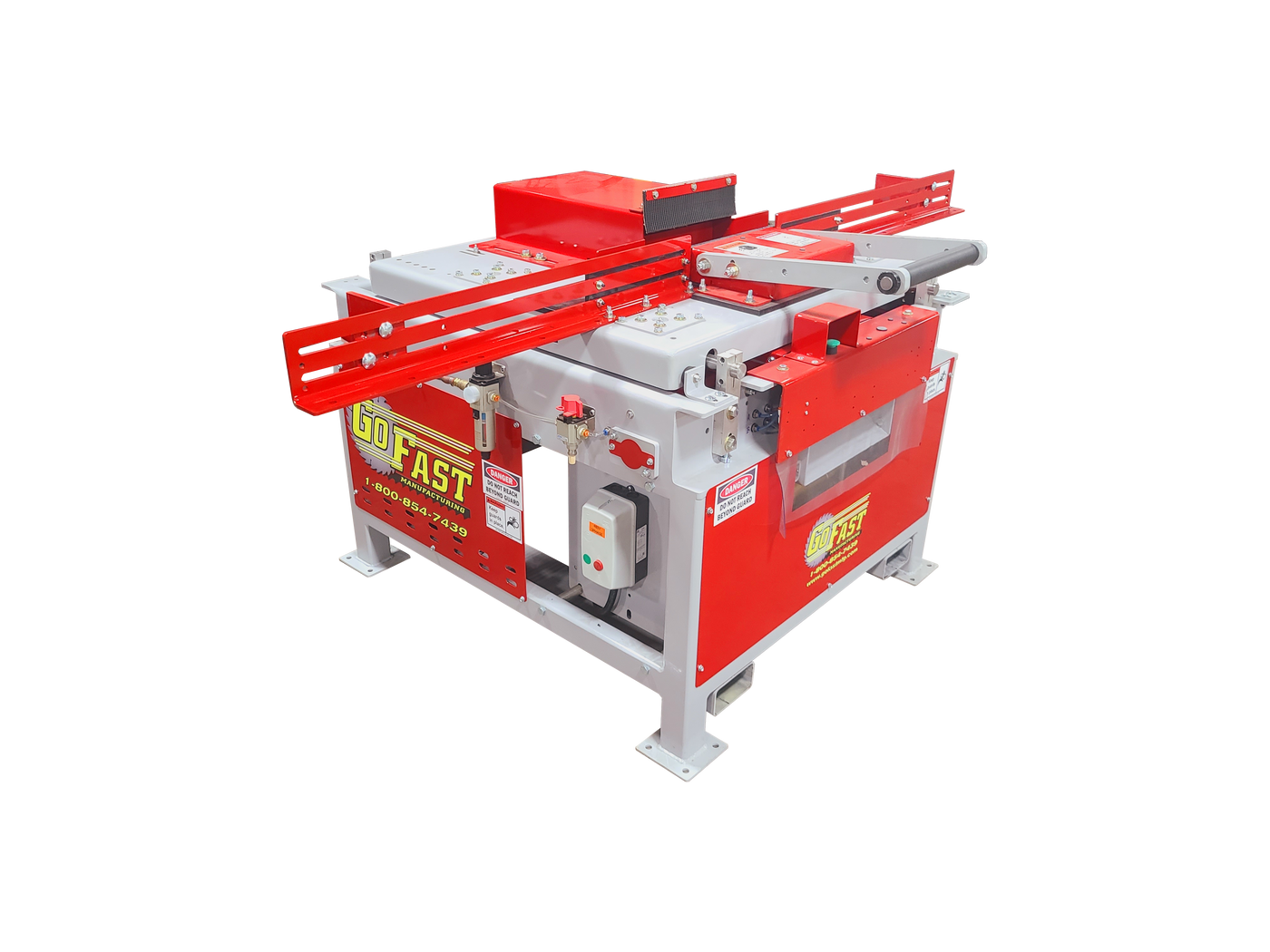

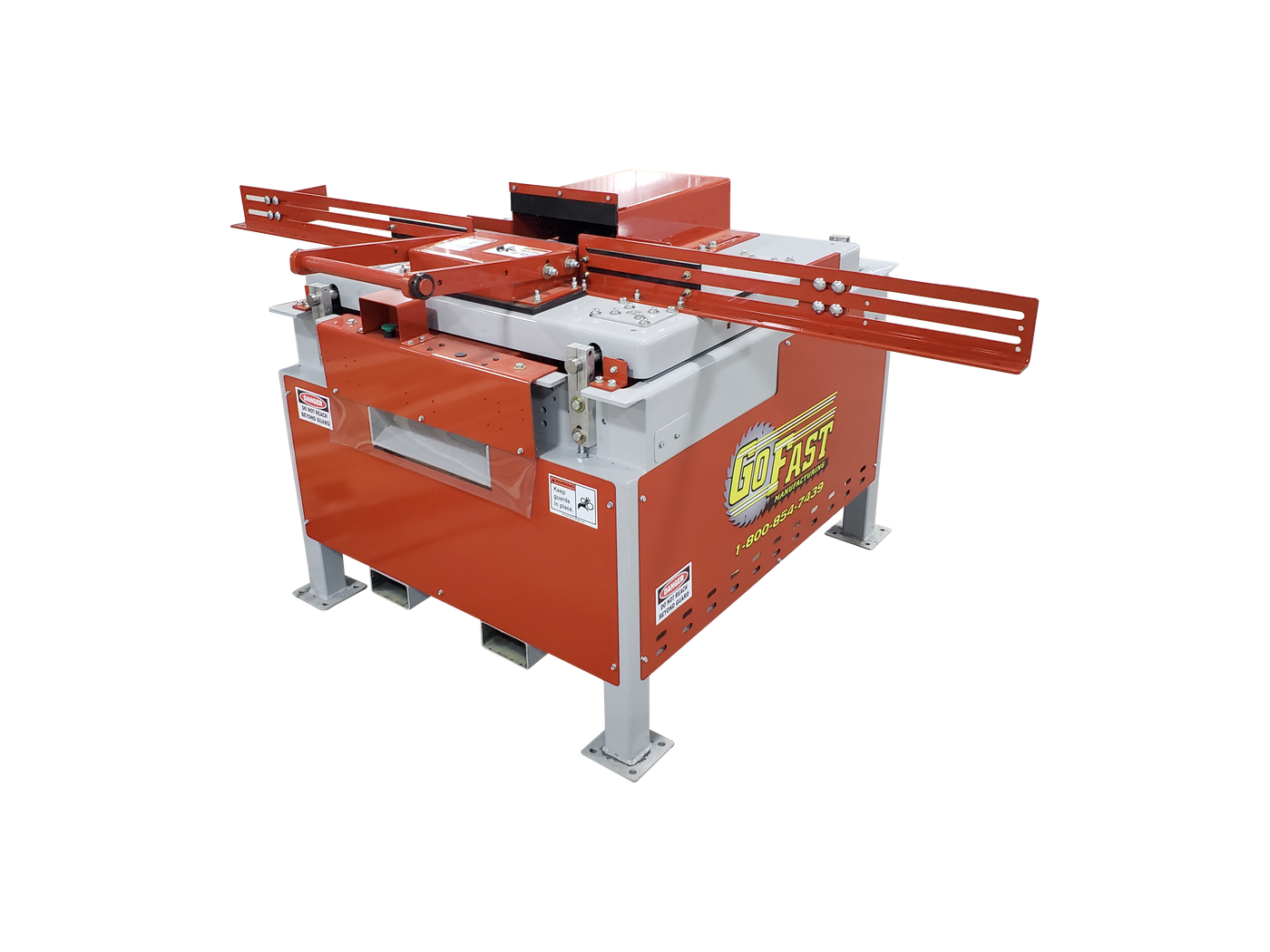

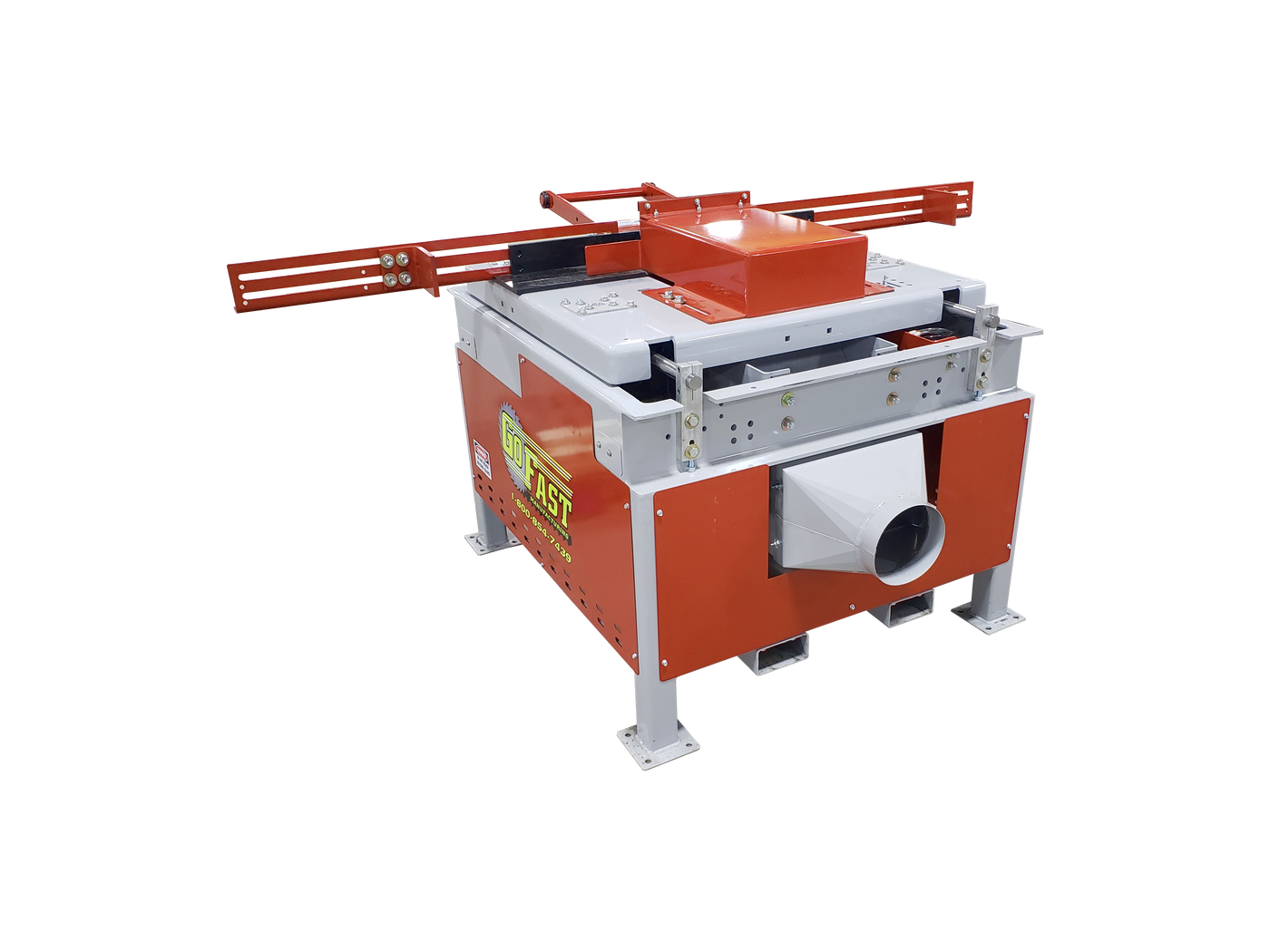

NXLM Notcher
The Go Fast NXL-M Single Head Notcher is a manual notching solution designed around safety, production, and future flexibility.
The operator manually pushes the material through the notching head to make the cut, keeping the machine simple and straightforward.
Although the NXL-M is manually operated, it uses the same rigid components found on our heavy-duty pneumatic notcher, giving shops a strong notching platform without overcomplicating the machine.
The NXL-M also features a safety pop-up gate that prevents the sliding table from moving until the operator presses a push button to initiate the cycle.
The machine can also be upgraded into a semi-automatic notcher, giving shops a clear path to increased production in the future.
CLICK ON THE VIDEOS BELOW TO SEE OUR NXLM NOTCHERS IN ACTION
Overview
- Designed for low levels of production
- Engineered for ease of use & operator safety
machine details
20HP Motor (Standard)
3-Groove Belt & Pulley Drive
3,600 RPM, 2” Cutter Head Arbor
Up to 540 Stringers per Hour
20 PSI Operating Pressure at 4 CFM
Includes the Following: Initiate Cycle Push Button, Cycle Timer Adjustment Valve, Lockout Valve, Regulator w/ Filter, Pressure Relief, & Mechanical Valve
(1) 8” Dust Port
2,300 CFM Recommended
Optional Sawdust Conveyor
65" Long x 93" Wide x 45" Tall
37" Working Height
3/8” Thick Steel Tabletop & Framing
1-1/4” Linear Bearings for Tabletop
Hardened Linear Bearing Shafts
Enclosed Cutter Head
0" – 2-1/2" (Standard Range)
9" Wide (1/2" – 12" Available)
Up to 6"
Up to 60" (Standard)
4" (Standard)
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
Multiple Cutter Carbide Options (New Material, Recycled Material, etc.)
Different Notch Widths Available (1/2" – 12")
Custom Notch Profiles
Fence Extension Kits to Accommodate Material up to 102", 144", or 186" Long
Riser Kit to Accommodate Material up to 6" Tall
Built to Accommodate Non-Standard Requirements
Modified for Unique Production Needs
Riser Waste Conveyor
Dump Hoppers
Flex Hose Kit
Automatic Air System to Convert Into "NXL" Notcher
10HP Motor Single Phase (May Decrease Production Rates)
Caster Feet
Stringer Stacking Rack
Stand Alone Control Station
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
Compare Our Notchers
Quick comparison to help you select the right machine for your operation.
| Machine name | ||||||
|---|---|---|---|---|---|---|
| Automation level | Fully Automated | Partially Automated | Partially Automated | Partially Automated | Partially Automated | Partially Automated |
| Cycle rate | Up to 7,000 Stringers Per Hour | Up to 4,000 Stringers per Hour | Up to 1,750 Stringers per Hour | Up to 800 Stringers per Hour | Up to 540 Stringers per Hour | Up to 240 Stringers per Hour |
| Material capacity | Up to 2-1/2" Wide X 4" Tall | Up to 8" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 6" Wide X 4" Tall | Up to 2" Wide X 5-1/2" Tall |
| Power options | 30HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 20HP 3-Phase Standard | 10HP 3-Phase Standard |
