MATERIAL HANDLING

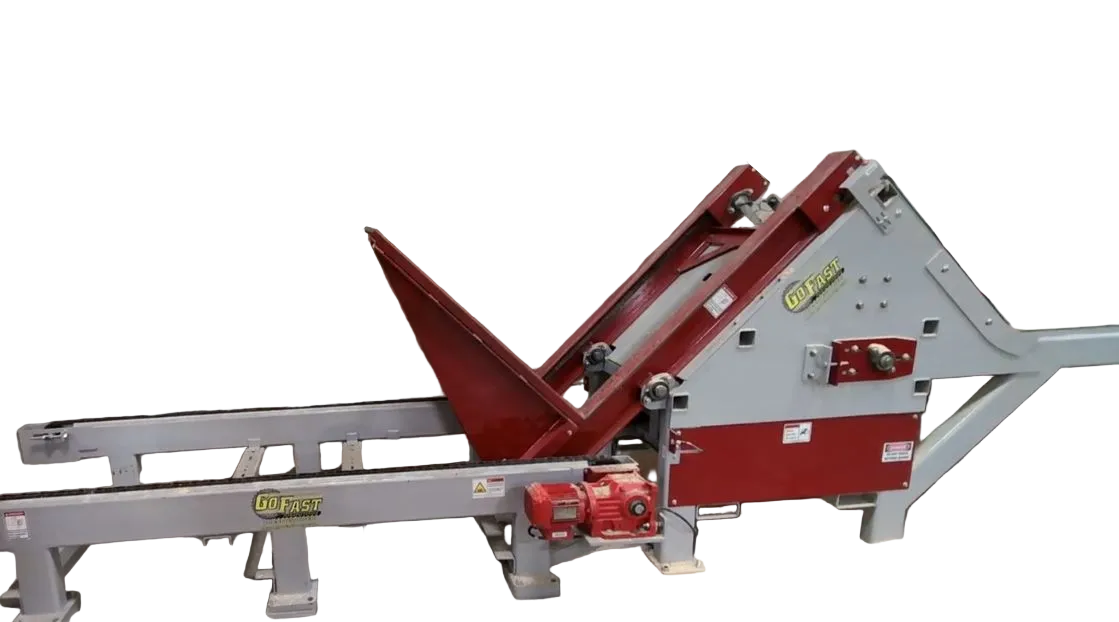

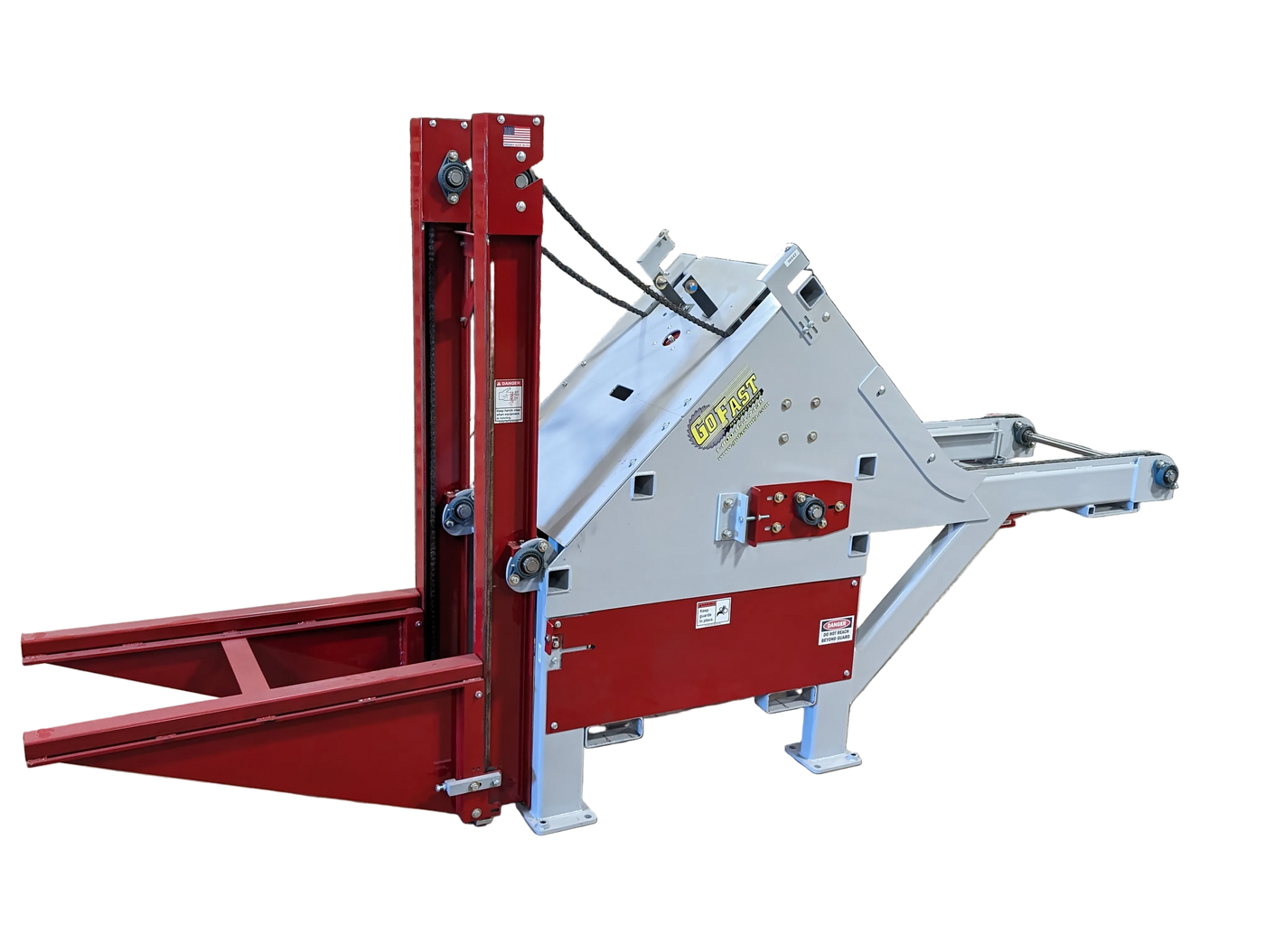

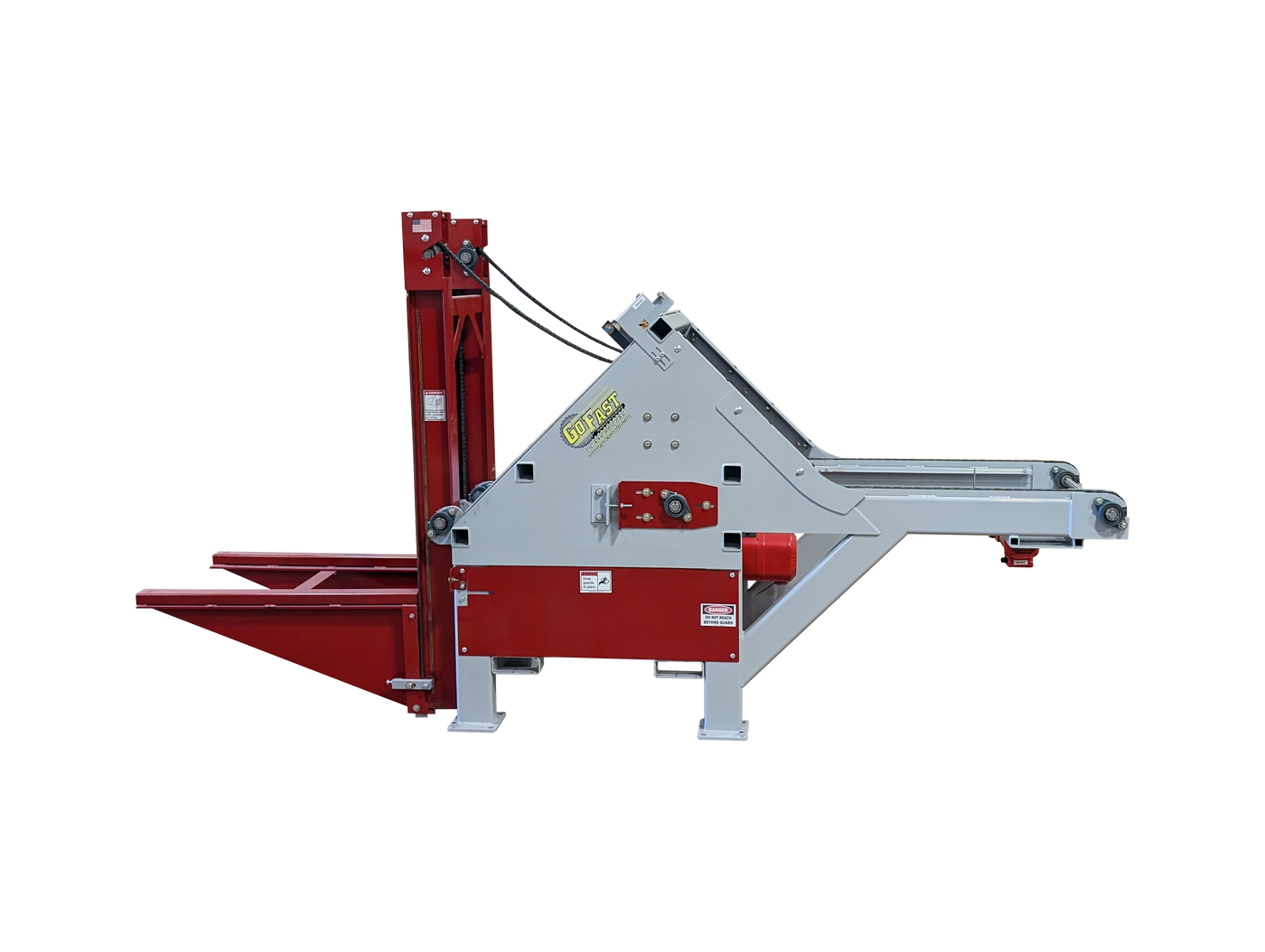

Stringer Tilt Hoist

The Stringer Tilt Hoist streamlines the process of feeding stringers into your notcher efficiently. Capable of handling bundles measure 54" tall x 48" wide, with lengths ranging from 36" to 72" and a lifting capacity of 6,000 lb, it operates with a 7.5HP electric helical gear drive featuring an electric brake for smooth handling. It's two strand outfeed deck ensures a seamless transition to your notcher. For enhanced productivity, consider combining this unit with our 2NXP double head notcher and UpSTAK board stacker.

Base Price $49,400

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

Stringer Tilt Hoist Video Library

SEE THE BEST TILT HOIST ON THE MARKET IN ACTION.

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEO BELOW TO SEE OUR STRINGER TILT HOIST IN ACTION

machine details

Specifications

Dual 60P Lift Chains
100P Drive Chain
Over-Travel Sensors
High Efficiency Helical Gearbox

Power

Chain Hoist Motor: 7.5HP 3PH Electric Motor
Conveyor Motor: 2HP 3PH Electric Motor

Dimensions

Approx. Dimensions: 162"L X 39"W X 84"T
Approx. Weight: 3,250 Lbs.

Bundle Capacity:

Lift Capacity: 6000 lbs.
Material Length Capacity: 30"-72"
Max Bundle Height Capacity: 54"
Max Bundle Width Capacity: 48"

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

Options

Infeed Conveyor
Wider Capacity Options
575 3Ph Power

Customization

If you require an option or customization not listed, please contact us. Our team will be happy to work with you to develop a solution that meets your specific requirements.

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change
