board dedusters

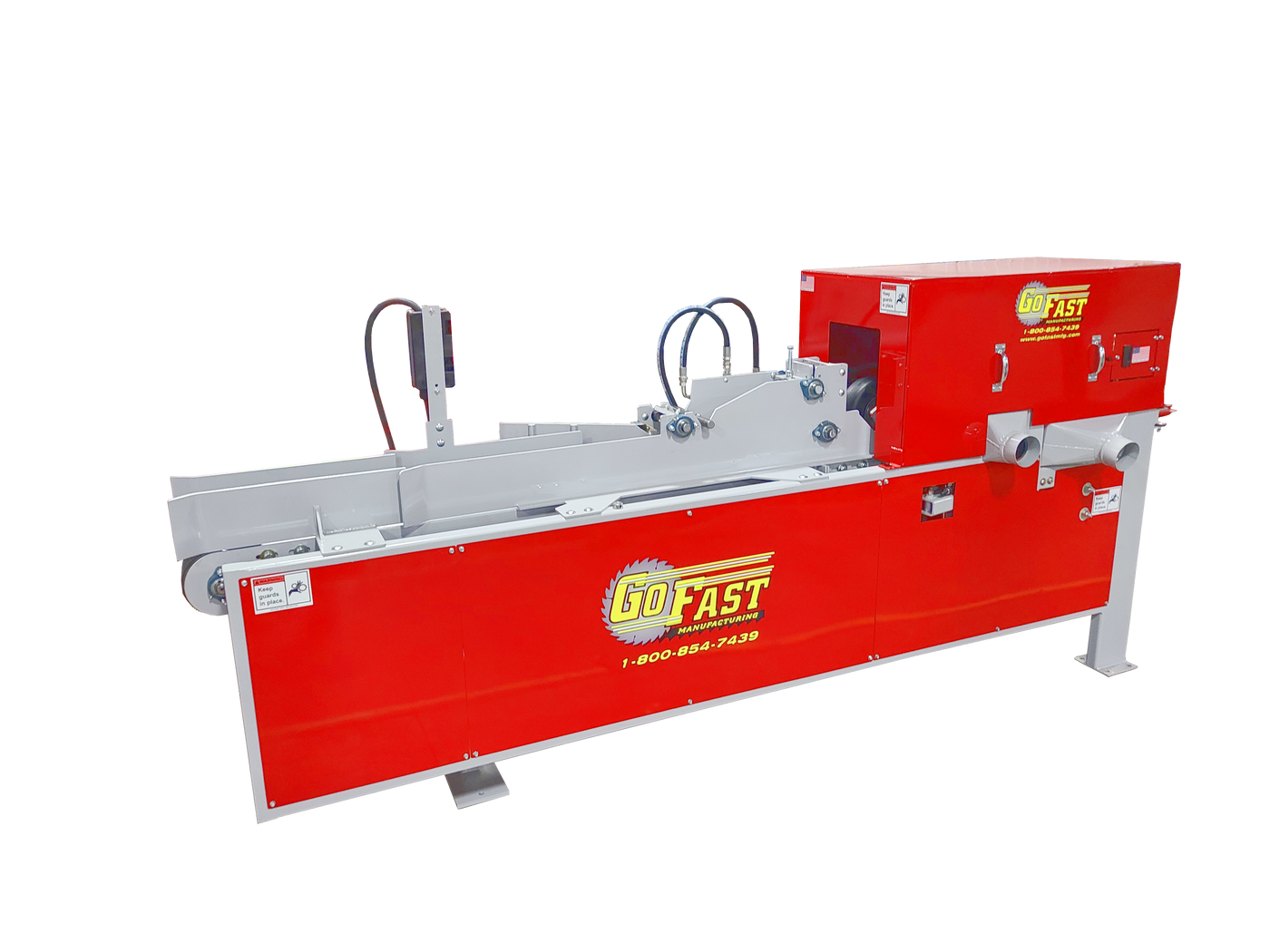

D3 DeDuster
The Go-Fast D3 Series DeDuster not only de-dust boards, but this compact machine also de-burrs stringy material off of the sides of boards. Still equipped with the Board Knocker System, this deduster will be an asset to any operation.
CLICK ON THE VIDEO BELOW TO SEE OUR DEDUSTERS IN ACTION
Overview
- Designed for the efficient removal of sawdust utilizing side sweeping disc brushes in lieu of traditional drum brushes
- Engineered for breaking frozen/sticky boards apart and jam prevention
machine details
Side De-Burring Brush w/ Powered Hold-Over Wheel
Side Sweeping Disc Brushes
Hydraulic-Powered Board Knocker Gate
5HP Motor 3-Phase (Standard)
Self Contained Hydraulic System w/ Variable Feed Speed
0 – 700 FPM
(2) 4" Dust Ports (400 CFM Recommended)
Dust Collection Recommended, but not Required
113" Long x 34" Wide x 57" Tall
27" – 36" Feed Belt Height
34" Exit Pinch Roller Height
Enclosed Brushes
2" – 6-1/4" (Standard Range)
18" Minimum
3/8" – 2-1/2" (Standard Range)
Custom Data Collection Reports
Accessible via HMI or Email
Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors
Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics
Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.
Board Counts
Machine Hours
Production Reports
3,000–7,000 Chain Lug Cycles Per Hour
Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions
5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips
See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock
2HP Electric Motor
Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates
5HP Single Phase Motor
Board Width: Can Quote for Specific Widths
Feed Belt Length: Can Quote Custom Lengths
Infeed Roll Case
Tailing Conveyors
Round Tables
Stacking Racks
Automatic Board Stacker
1/3HP Electric Motor
Actuated Transition Plates
Toggle Switch to Air Cylinders
Dual 2060 Cogged Chain Strands
Seamless UHMW Transitions
Smooth Transfer to Board Stackers
