Trim saws

stringer trimmer

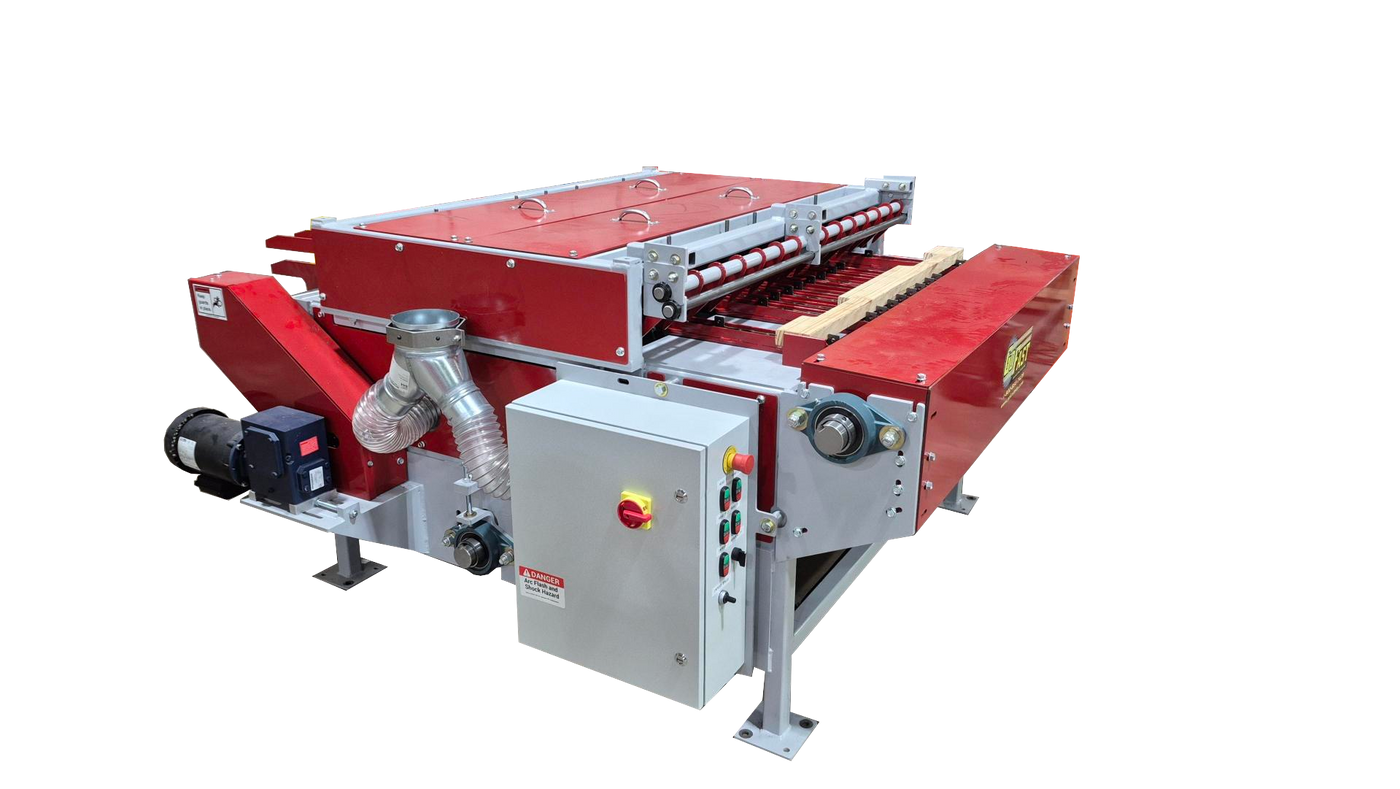

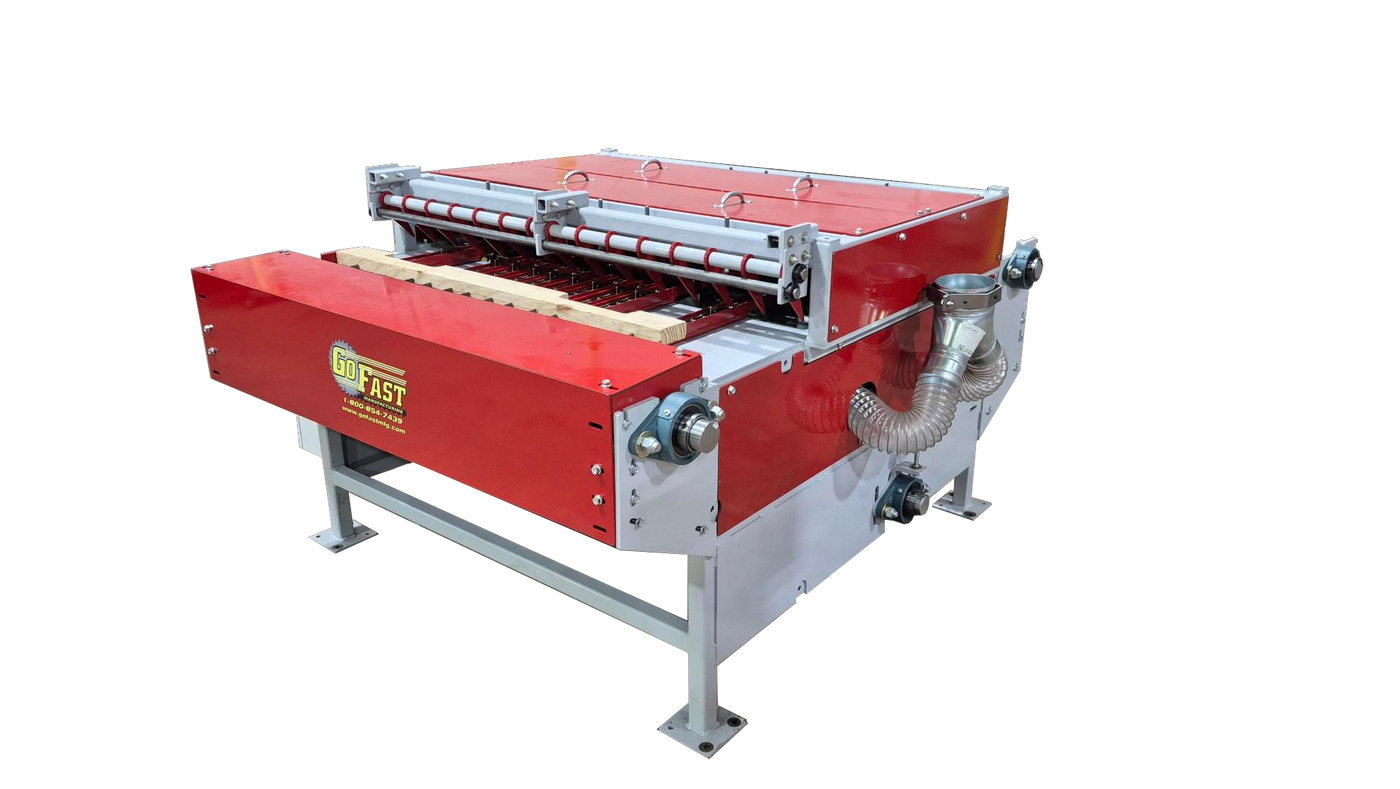

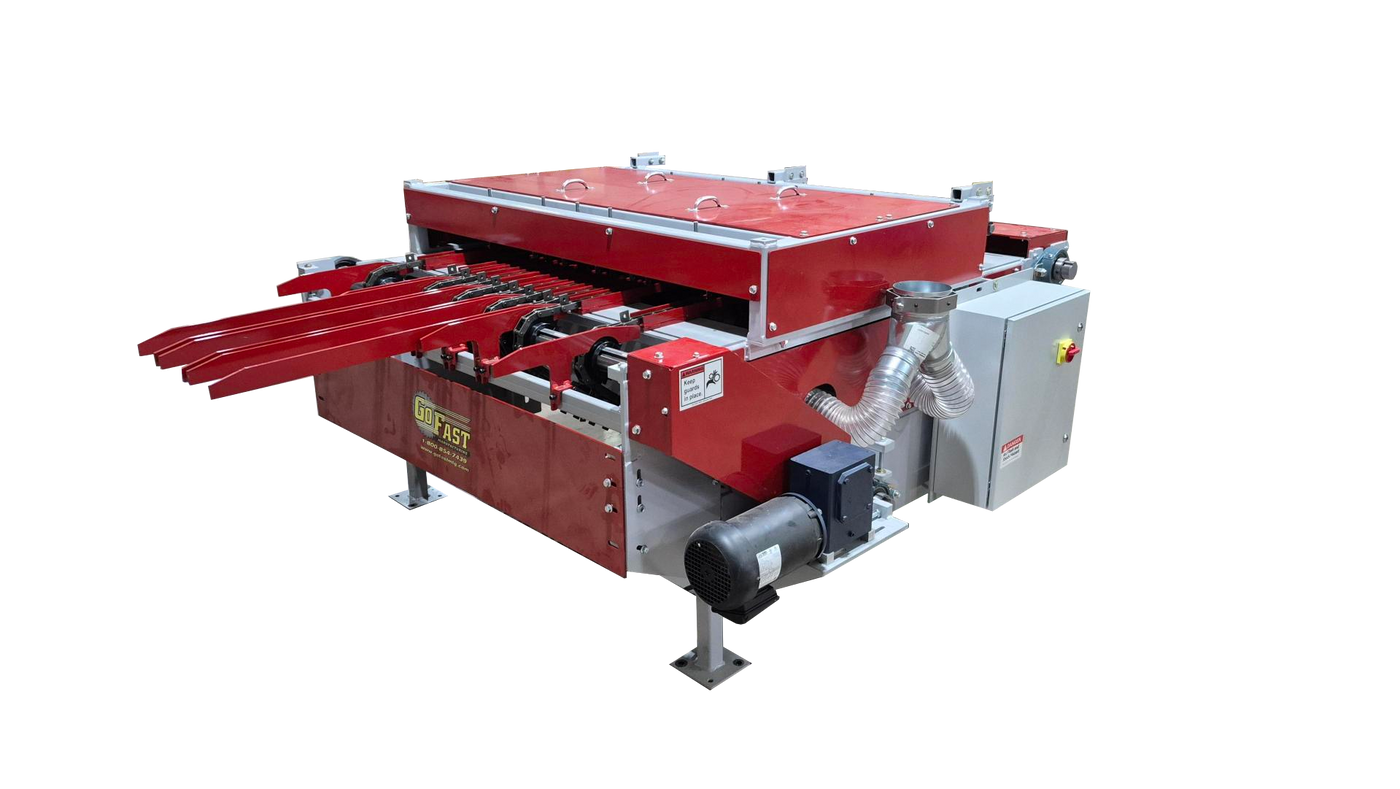

The Stringer Trimmer is a purpose-built machine for pallet repair operations that want to stop tearing down good pallets because of a single broken stringer. It turns #1, #2, or reclaimed stringers into standardized repair blocks—patch pieces used to reinforce damaged stringers and get pallets back into service fast. This isn’t a traditional trim saw; it’s a smarter way to repair pallets while saving time, labor, and material.

Parts & Support Download Spec Sheet

NOTE: Pricing shown is a starting point. Final quote depends on options and plant layout.

}

Stringer Trimmer Video Library

SEE THE BEST TRIMSAW ON THE MARKET IN ACTION.

FOOTAGE OF: PROMOVIDEOS • TEST-RUNS • INSTALLS • OPTIONS

CLICK ON THE VIDEOS BELOW TO SEE OUR STRINGER TRIMMER IN ACTION

Overview

Designed for low levels of production
Engineered for ease of use & operator safety

machine details

standard features

Panel Mounted Controls
1HP Variable Speed Infeed Chains
Adjustable Board Stop
10 Strand 2060 Infeed Chain, High Flights Every 12"

Blade specifications

Blade:

14" Carbide Tipped

Power:

5HP 3 Phase (Standard)

7.5HP 3 Phase Option Available

Cycle Speed

0 – 40 Cogs Per Minute

waste evacuation

4" Dust Ports (400 CFM per Head)

frame & build

2" Square Tubular Framing
2-7/16" Infeed Chain Shafts & Bearings
1" Thick Steel Hold-Downs

safety

Enclosed Blades

E-Stop on Electrical Panel

Anti-Kickback Fingers

dimensions

83" Long x 107" Wide x 46" Tall
36" Working Height

board width capacity:

Up to 10"

board height capacity

Up to 2"

Board length capacities:

Overall Length: Up to 54" (Standard)
Length Between Cuts: 5" – 19" (Standard)

number of heads

4 (Standard)

Custom Reports

Custom Data Collection Reports
Accessible via HMI or Email

Communication

Interfaces with Go Fast Machinery
Supports Custom Add-On E-Stops, Buttons & Sensors

Optional VPN

Remote Access for Go Fast Engineering
Advanced Off-Site Diagnostics

Troubleshooting

Live Troubleshooting Screen in HMI
Displays Faults & Sensor States
Quick Diagnostic Access.

Data Collection

Board Counts
Machine Hours
Production Reports

Adjustable Speed

3,000–7,000 Chain Lug Cycles Per Hour

Jam Prevention

Rotating Board Kick-Off Fingers
Catch Hooks for Doubled Boards
Thickness Limiter Bar
Seamless Conveyor Surface
Flat-Top Design Minimizes Angular Transitions

Infeed Chain

5-Strand 2060 Infeed
Evenly Spaced Cogs
UHMW Wear Strips

Guarding

See-Through Guarding
Quick-Access Doors
Optional E-Stop Door Interlock

Power

2HP Electric Motor

Construction

Welded Steel Frame
3/8" Thick Steel Plate Pit
3x2 Structural Steel Framing
1/4" Thick Steel Side Plates

machine options

Infeed Board Hopper
Variable Infeed Speed
Additional Blade Options Upon Request

system options

Product Conveyor(s)
Dust Collection Units
Custom Capacities Upon Request

Power

1/3HP Electric Motor

Setup Process

Actuated Transition Plates
Toggle Switch to Air Cylinders

Chain

Dual 2060 Cogged Chain Strands

Transitions

Seamless UHMW Transitions
Smooth Transfer to Board Stackers

Note Subject to change

Compare Our Trimsaws

Quick comparison to help you select the right machine for your operation.

Machine name	MET-20 View machine	DET-20 View machine	TS-10 View machine	Stringer Trimmer View machine	firewood slab trim saw View machine
Number of Heads	3-8	2	1	1-4	2-6
Cycle rate	Up to 32 Cogs/Minute	Up to 32 Cogs/Minute	Up to 33 Cogs/Minute	Up to 40 Cogs/Minute	Up to 32 Cogs/Minute
Material capacity	Up to 12" Wide X 5" Tall	Up to 8" Wide x 4-1/2" Tall	Up to 8" Wide x 4" Tall	Up to 10" Wide x 2" Tall	Up to 8" Wide x 4" Tall
Power options	10HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	5HP 3-Phase Standard	10HP 3-Phase Standard
